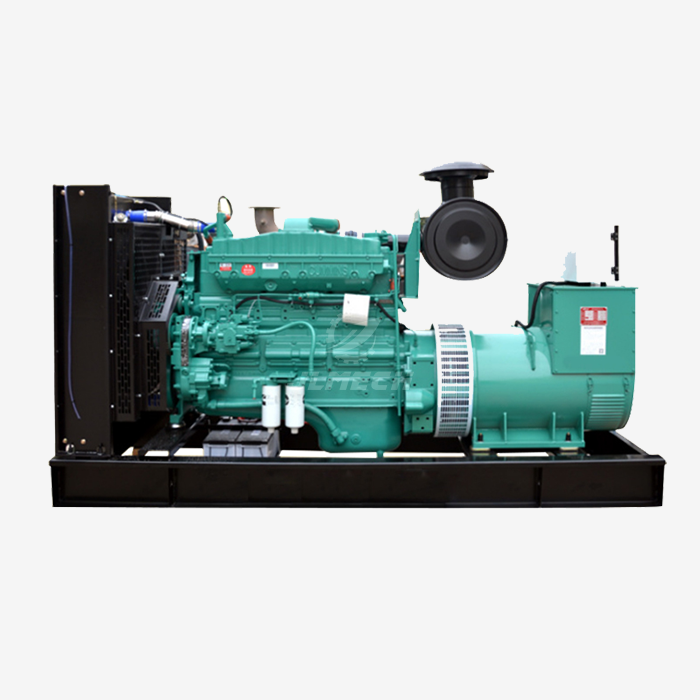

diesel generator set 500kva
Rated AC Voltage(V):400/230
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:Six Cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH:Your Trusted Diesel Generator Set 500kva Manufacturer&Supplier
Wuhan Jlmech Co., Ltd. specializes in designing and manufacturing premium diesel generator set 500kVA trusted by global brands like Cummins and Perkins.With ISO 9001/14001 certifications, 26 overseas offices, and a 2-year warranty, we deliver robust, fuel-efficient power solutions tailored for industries requiring uninterrupted operations.
Diesel Generator Set 500kva Description
Our diesel generator set 500kVA combines high-performance engines with intelligent control systems, ensuring seamless power for factories, hospitals, data centers, and remote sites. Moreover, we are able to customize different styles for diesel generator sets, including open type, silent type, trailer type, container type, and rainproof power station type....
Specifications
| Model | Powe (KW) | Power (KVA) | Current (A) | Engine model | Cylinder | Bore*Stroke (mm) | Displacement (L) | Lube oil (L) | Consumption (g/kw.h) | Size (mm) | Weight (Kg) |
| JL-7GF | 7 | 8.75 | 12.6 | 403A-11G1 | 3 | 77*81 | 1.13 | 4.9 | 248 | 1200*700*1100 | 300 |
| JL-10GF | 10 | 2.5 | 18 | 403D-15G | 3 | 84*90 | 149 | 6 | 248 | 1250*700*1100 | 350 |
| JL-16GF | 16 | 20 | 28.8 | 404D-22G | 4 | 84*100 | 2.2 | 10.6 | 237 | 1500*710*1100 | 500 |
| JL-24GF | 24 | 30 | 43.2 | 1103A-33G | 3 | 105*127 | 3.3 | 79 | 211 | 1500*750*1100 | 800 |
| JL-50GF | 50 | 62.5 | 90 | 1103A-33TG2 | 3 | 105*127 | 3.3 | 79 | 215 | 1550*750*1180 | 1050 |
| JL-50GF | 50 | 62.5 | 90 | 1104A-44TG1 | 4 | 105*127 | 4.4 | 8 | 208 | 1800*750*1180 | 1100 |
| JL-80GF | 80 | 100 | 144 | 1104D-E44TAG2 | 4 | 105*127 | 4.4 | 8 | 216 | 1950*800*1200 | 1250 |
| JL-120GF | 120 | 150 | 216 | 1106A-70TAG2 | 6 | 105*135 | 7.01 | 16.5 | 208 | 2600*950*1450 | 1450 |
| JL-160GF | 160 | 200 | 288 | 1106A-70TAG4 | 6 | 105*135 | 7.01 | 16.5 | 220 | 2800*950*1450 | 2100 |
| JL-200GF | 200 | 250 | 360 | 1506A-E88TAG3 | 6 | 112*149 | 8.8 | 41 | 200 | 3100*1000*1700 | 2150 |
| JL-240GF | 240 | 300 | 432 | 1506A-E88TAG5 | 6 | 112*149 | 8.8 | 41 | 198 | 3100*1000*1700 | 2150 |
| JL-320GF | 320 | 400 | 576 | 2206C-E13TAG3 | 6 | 130*157 | 12.5 | 40 | 206 | 3350*1200*2000 | 3300 |
| JL-400GF | 400 | 500 | 720 | 2506C-E15TAG2 | 6 | 137*171 | 15.2 | 62 | 211 | 3450*1200*2100 | 3760 |
| JL-600GF | 600 | 750 | 1080 | 4006-23TAG2A | 6 | 160*190 | 22.9 | 113 | 202 | 4500*1800*2300 | 5500 |
| JL-720GF | 720 | 900 | 1296 | 4008TAG1A | 8 | 160*190 | 30.5 | 153 | 206 | 4800*2100*2500 | 7700 |
| JL-800GF | 800 | 1000 | 1440 | 4008TAG2A | 8 | 160*190 | 30.5 | 153 | 214 | 4900*2100*2500 | 8000 |
| JL-900GF | 900 | 1125 | 1620 | 4008TAG2 | 8 | 160*190 | 30.5 | 165 | 202 | 4900*2100*2500 | 8000 |
| JL-1000GF | 1000 | 1250 | 1800 | 4012-46TWG2A | 12 | 160*190 | 458 | 177 | 212 | 4950*2200*2550 | 8500 |
| JL-1100GF | 1100 | 1375 | 1980 | 4012-46TWG3A | 12 | 160*190 | 45.8 | 177 | 212 | 4950*2200*2550 | 8700 |
| JL-1200GF | 1200 | 1500 | 2160 | 4012-46TAG2A | 12 | 160*190 | 45.8 | 177 | 200 | 5050*2200*2550 | 9100 |
| JL-1360GF | 1360 | 1700 | 2448 | 4012-46TAG3A | 12 | 160*190 | 45.8 | 177 | 208 | 5050*2200*2550 | 9500 |
| JL-1600GF | 1600 | 2000 | 2880 | 4016-61TRG2 | 16 | 160*190 | 61.1 | 237 | 205 | 5800*2800*3100 | 14000 |
| JL-1800GF | 1800 | 2250 | 3240 | 4016-61TRG3 | 16 | 160*190 | 61.1 | 237 | 205 | 5900*2800*3100 | 15700 |
The rotational speed in the above technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230 V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Perkins (also known as Rolls-Royce) Engines Limited of the United Kingdom was founded in 1932, with an annual production of nearly 400,000 engines. It has a wide variety of specifications: The products have a complete range of specifications and a large variety, covering diesel generator sets with a power range from 7KW to 1811KW, which can meet the power requirements of different users.
Why Choose US?
- Global Expertise: 52 engineers across 3 R&D centers optimize performance for tropical, arid, or high-altitude conditions.
- OEM Partnerships: Proven compatibility with brands like MTU and Liebherr.
- Total Cost Savings: 2-year warranty covers mechanical/electrical parts, reducing long-term maintenance costs.
- Fast Response: 26 overseas offices in Africa/Asia ensure spare parts and technical support within 48 hours.
Packaging and Delivery
Diesel generator set 500kVA are crated in weatherproof, shock-resistant packaging with GPS tracking.

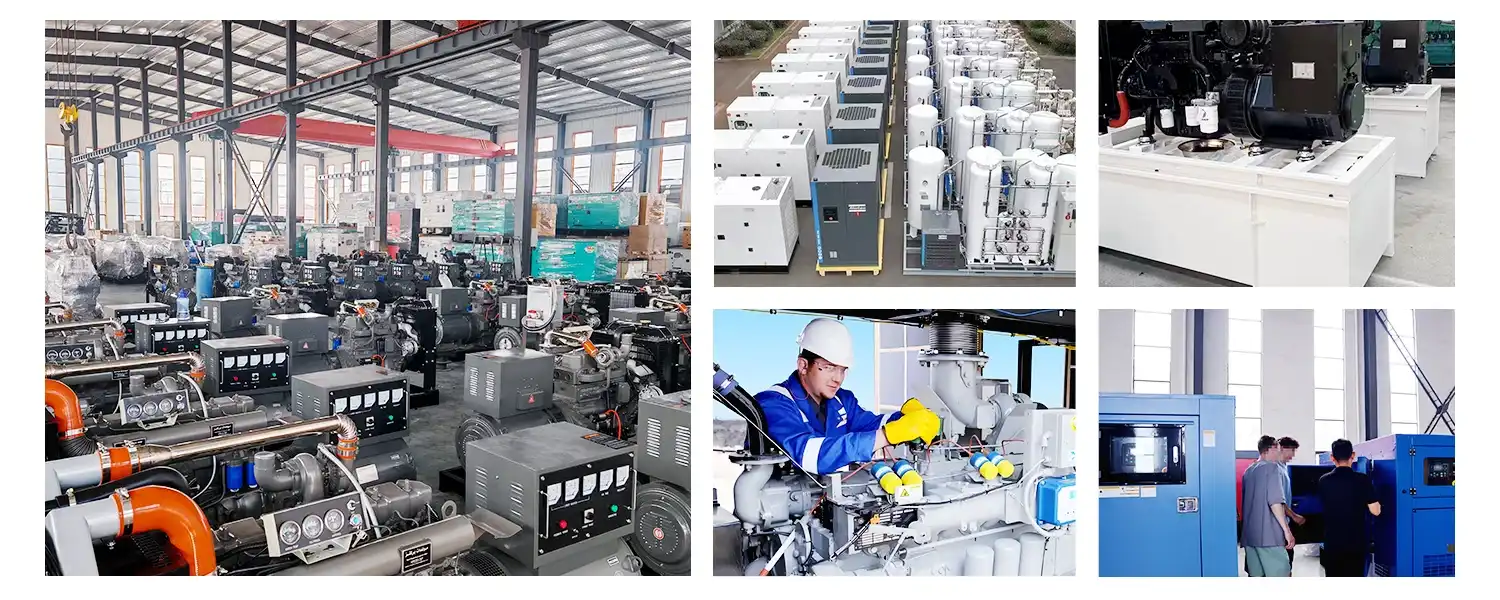

About Wuhan Jlmech Co., Ltd.
Wuhan Jlmech Co., Ltd. operates 11 branches across China and serves clients in 30+ countries. Our facilities include a sheet metal workshop, automated coating lines, and rigorous testing labs to meet ISO9001/ISO14001 standards.
After-Sales Service
24/7 remote monitoring and on-site maintenance teams available.
Certifications
CE, CSA, UL, ISO9001, and ISO14001 certified.
Exhibitions
Regular exhibitors at PowerGen Asia and Middle East Energy.
FAQ
Q: How to ensure product quality?
A: Pre - produce samples before mass production. Mass - produce after client confirmation.
Provide production progress updates and conduct quality inspections as required.
Q: Can you offer technical support and training?
A: Yes. Our professional team offers installation guidance and troubleshooting. New clients get product use and maintenance training.
Q: Lead time for bulk orders?
A: 20 days for 10+ units.Subject to the actual inventory.
Q: Emissions documentation?
A: Provided with delivery for regulatory compliance.
Q: Payment terms?
A: TT, LC, or flexible financing for repeat clients.
Q: How to handle after - sales issues?
A: 1 - year or 1000 - hour warranty (whichever comes first). Provide remote video guidance and spare parts within warranty. Offer remote guidance after warranty.
Need a Durable 500kVA Diesel Generator Set?
Email skala@whjlmech.com to get a quote for bulk orders of diesel generator set 500kVA. Let's keep your operations running!
